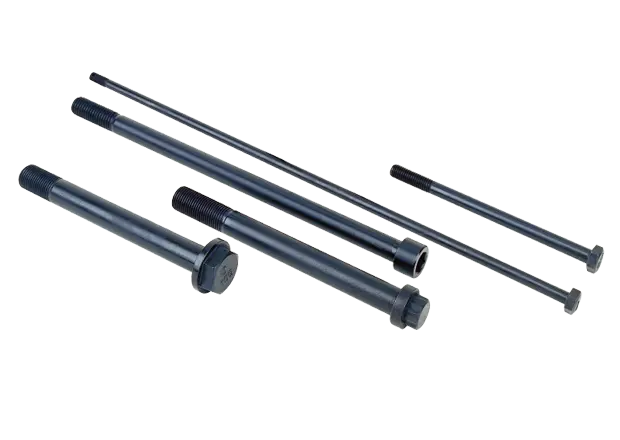

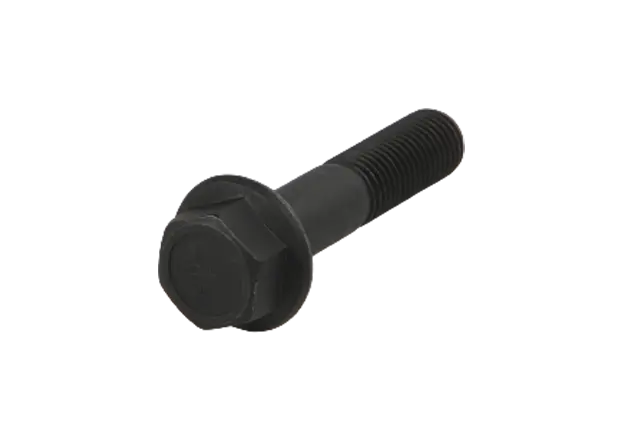

Flange Bolts

The flange bolt is an integral bolt composed of a hexagon head, a flange, and a screw.


According to the different positions of the flange bolts, the size requirements of the flange are different, and there are flat bottom and toothed ones, and the toothed ones play an anti-skid role. High-strength flange bolts have the advantages of being able to withstand higher preload, good anti-loosening performance, precise decoration, and strong durability.


Flange bolts are widely used in engines, heavy machinery, roads, railways, bridges, and other fields.

Specification of Flange Bolts

Thread specification range (mm)M16-M90
Maximum processing length (mm)≤1500mm
Strength Range≤1450MPa
Geometric ToleranceThe verticality of the supporting surface relative to the thread is ≤0.02mm
Friction Coefficientμtot, μb, μth
Surface TreatmentBlack oxide, Phosphating, Flake zinc-aluminum coating (Dacromet, Geomet), HDG (Hot dip galvanizing), Electro galvanizing, Mechanical galvanizing, Copper plating, Teflon, Special coating for marine engine parts, etc.
Standard SpecificationsAll items are produced in strict accordance with industry standards or client-specific requirements.
